Characteristic

➤ Innovative anti-drop design
Innovative anti-drop design of Ball retention system for quick and safe assembly

➤ Up to 20,000 km maintenance-free
For optimal maintenance-free operation, all BM blocks are factory pre-lubricated. And it also equipped with Lubrication reservoir to ensure lubricated conditions in the system

➤ Dustproof and smooth running
Optimized sealing and steel ball circulation design make the smooth operation and have excellent dust-proof performance

Specification

Ordering key of System

((For ordering key of Block and Rail, Please refer to Catalog Chapters 3.12 and 3.13)

Dimension

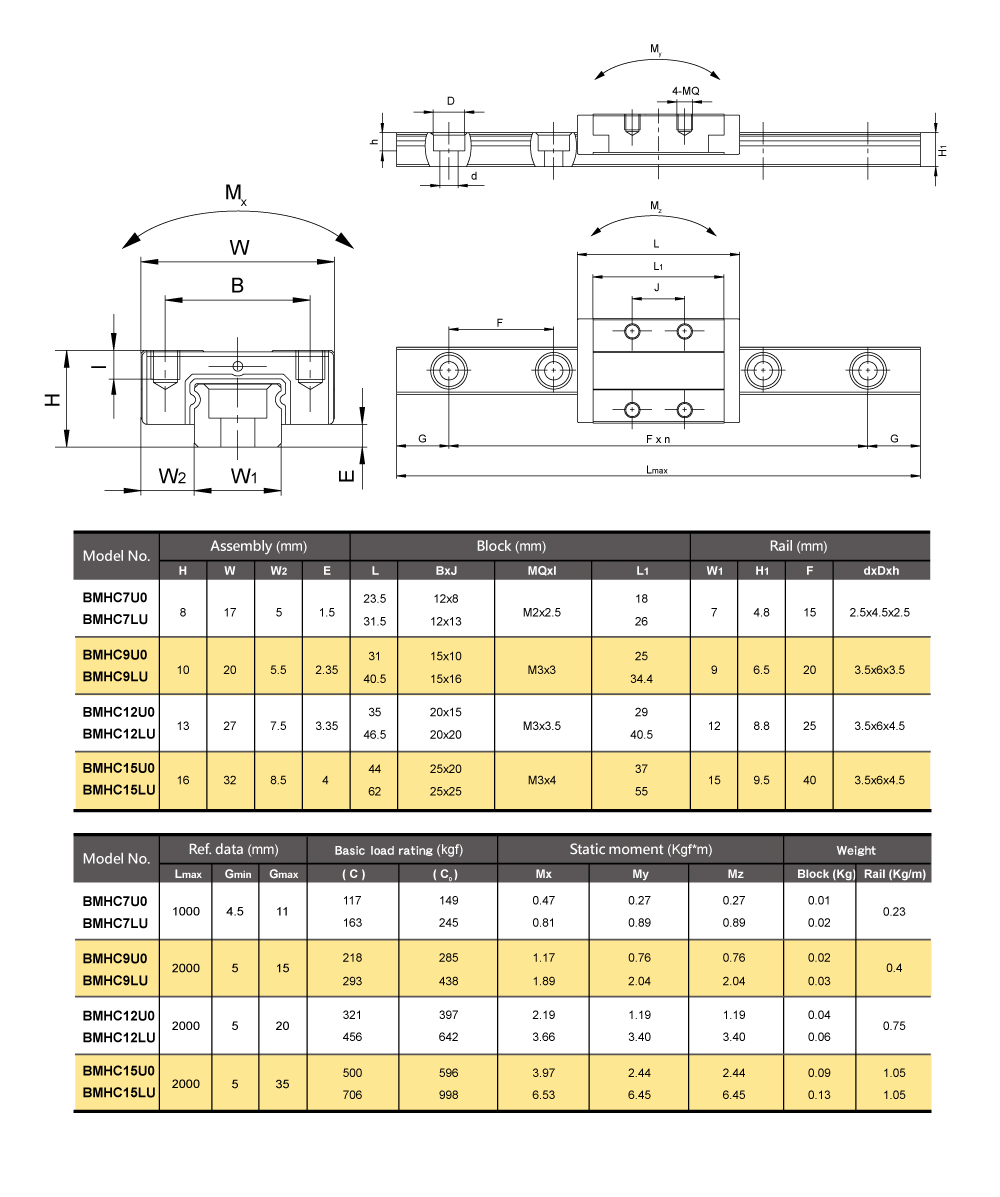

BMHC-U0/LU Standard type

BMWC-U0/LU Wide type

Construction

Technical Support

ABBA have an engineering team with strong technical capabilities to fully support all customers' demands and provide professional opinion for consulting.
